Wine Bag-in-Box with Butterfly Valve
Sustainable Red Wine Packaging for Extended Freshness & Convenience

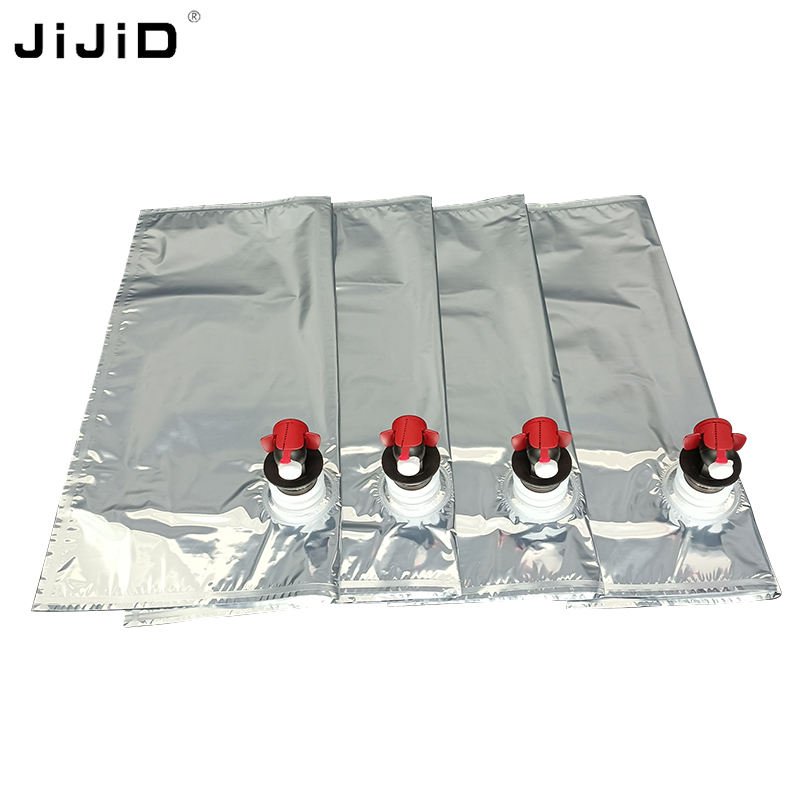

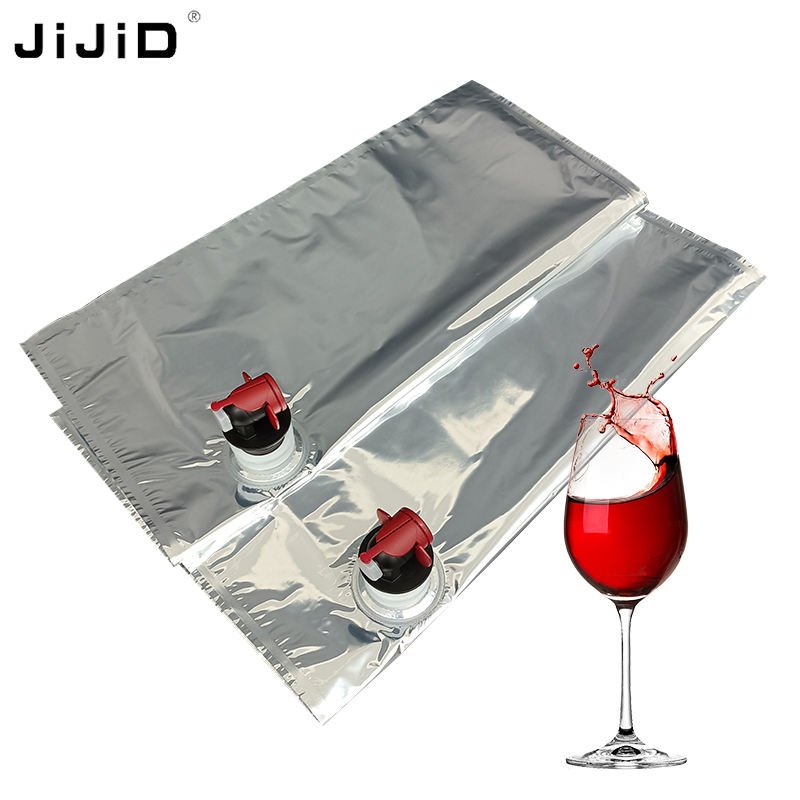

JIJIDPACK’s Wine Bag-in-Box system offers a smart, eco-friendly solution for packaging red and white wines. Each set includes a food-grade multi-layer foil bag with a butterfly dispensing valve, enclosed in a durable, recyclable kraft paper box. Designed to preserve the wine’s freshness by minimizing oxygen exposure and preventing light penetration, this system extends the wine’s shelf life up to 6–8 weeks after opening.
Whether you’re a winery, retail distributor, or part of the hospitality industry, our Bag-in-Box packaging is the perfect choice for both commercial and at-home wine service.
✅ Key Features
-
Premium Material: Multi-layer foil or transparent food-grade film ensures excellent oxygen and light barrier.
-

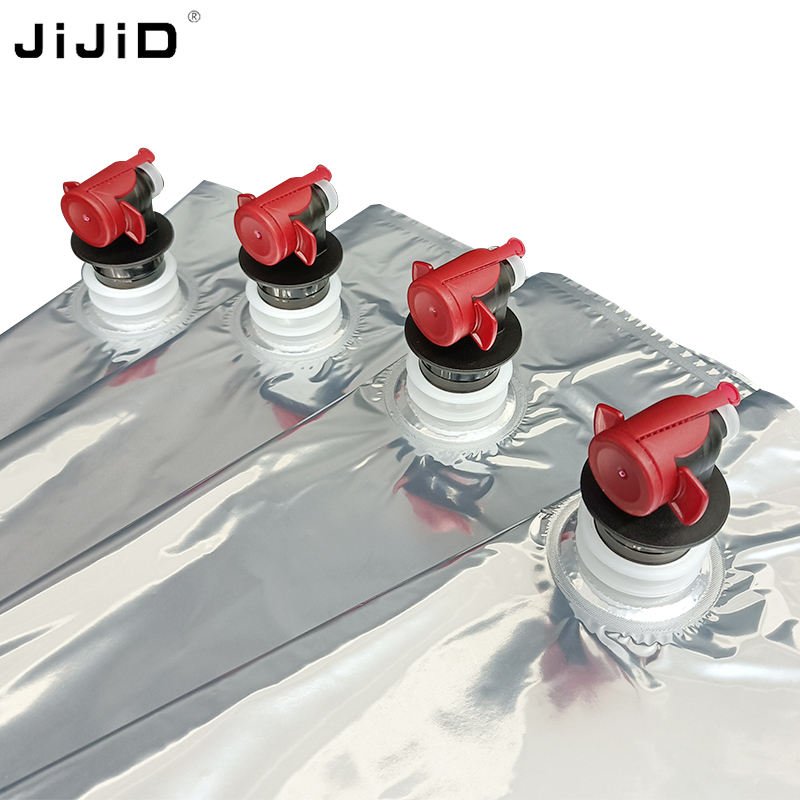

Leak-Proof Valve: Equipped with a butterfly tap for smooth, controlled dispensing.
-
Various Capacities: Available in 1L to 5L as standard, with custom sizes up to 30L available.
-
Customizable: OEM printing, valve color, and structural customization supported.
-
Strong Paper Box: Triple-layer kraft board box for safe transport and retail display.
-
Eco-Friendly: 80% lower carbon footprint than traditional glass bottles.
-
Extended Freshness: Keeps wine fresh for 6–8 weeks after opening, and several months when sealed.
-
Ideal for: Wineries, restaurants, bars, refill stations, and household wine consumption.
📦 Standard Capacity & Packaging Specifications (1L–5L)
| Capacity | Bag Size (cm) | Box Size (cm) | Bags/CTN | Boxes/CTN | Carton Size (cm) | Net Wt/CTN (kg) | Gross Wt/CTN (kg) |
|---|---|---|---|---|---|---|---|
| 1L | 30 × 18 | 16 × 14 × 14 | 600 | 60 | 61 × 51 × 42 | 16.2 / 6.8 | 17.4 / 7.8 |
| 1.5L | 30 × 21 | 23 × 14 × 13 | 550 | 60 | 61 × 51 × 42 | 16.5 / 8 | 17.7 / 9 |
| 2L | 30 × 23 | 23 × 14 × 15 | 500 | 60 | 61 × 51 × 42 | 16 / 9.2 | 17.2 / 10.2 |
| 2.5L | 35 × 24 | 25 × 16 × 16 | 500 | 60 | 61 × 51 × 42 | 14.6 / 11.9 | 15.8 / 12.9 |
| 3L | 35 × 26 | 27 × 16 × 18 | 450 | 60 | 61 × 51 × 42 | 15.1 / 12.2 | 16.3 / 13.2 |
| 4L | 40 × 32 | 27 × 16 × 20 | 420 | 60 | 61 × 51 × 42 | 16.8 / 12.8 | 18 / 13.8 |
| 5L | 40 × 35 | 28 × 16 × 22 | 400 | 60 | 61 × 51 × 42 | 18 / 13.9 | 19.2 / 14.9 |
🛠️ OEM customization available for size, structure, and branding.
📐 Extended Capacity Bag Size Chart (1L–30L, Bag Only)
Perfect for catering, institutional, or bulk retail wine needs.
| Capacity | Suggested Bag Size (cm) |
|---|---|
| 1L | 30 × 18 |
| 3L | 35 × 26 |

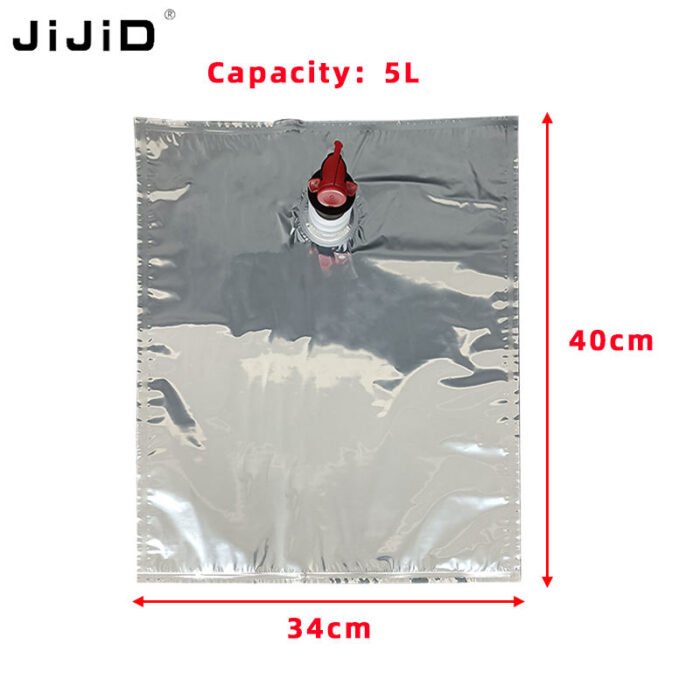

| 5L | 40 × 35 |
| 10L | 45 × 55 |
| 15L | 48 × 65 |
| 20L | 50 × 75 |
| 25L | 55 × 80 |
| 30L | 60 × 85 |
🔧 Material Structure–in stock
-
Metallic: PA / VMPET / PE + PE
-
Box Structure: Corrugated E-flute kraft paper
All materials are food-grade and manufactured under clean room standards.
🌿 Eco-Conscious Packaging
Choosing wine Bag-in-Box packaging over glass bottles helps reduce environmental impact:
-
✅ 80% lower carbon footprint
-
✅ Reduced raw material use and shipping weight
-
✅ Easy to flatten and recycle after use
-
✅ No bottle breakage or waste
🏷️ Typical Applications
-
Red & white wines
-
Organic and small-batch wines
-
Refill stations / wine-on-tap
-
Hotels, restaurants, bars
-
Wholesale and export packaging
📞 Looking for Custom Packaging?
At JIJIDPACK, we support full OEM/ODM customization:
-
Custom printed foil bags or boxes
-
Valve color and type options
-
Packaging kits or bulk components
-
Flexible order quantities and global shipping
❓ Frequently Asked Questions (FAQ)
Q1: What is a wine Bag-in-Box?
A Bag-in-Box (BIB) is a wine packaging format where wine is vacuum-packed in a foil bag and placed inside a cardboard box, allowing convenient, air-free dispensing.
Q2: How long does wine stay fresh in this packaging?
Unopened, it stays fresh for months. After opening, it remains drinkable for 6–8 weeks, thanks to reduced oxygen exposure.
Q3: Can I get custom printing on the bag or box?
Yes, we offer full customization — including printed branding, size adjustments, and valve colors.

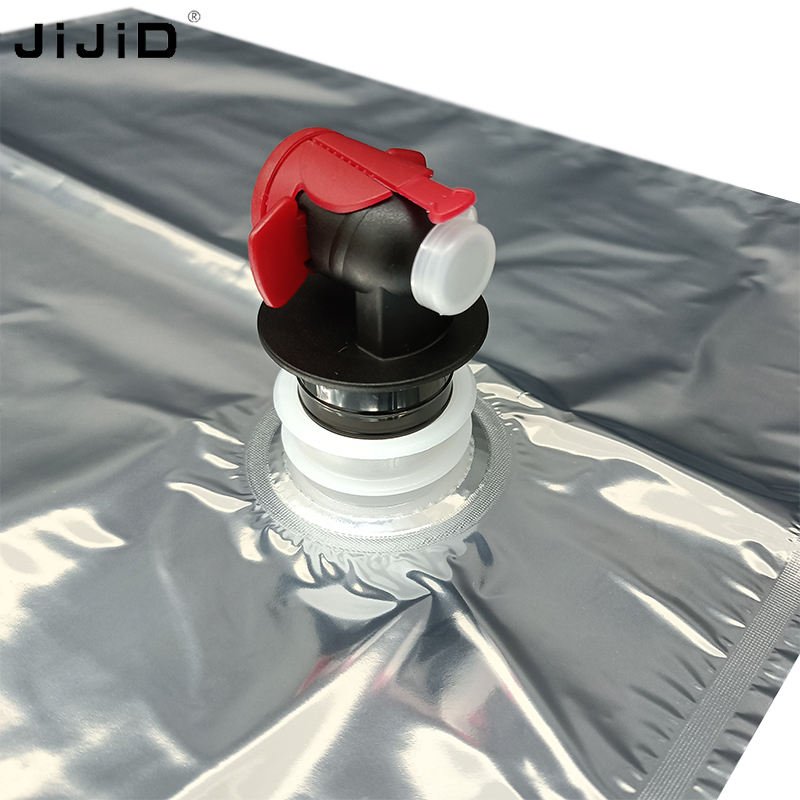

Q4: What kind of valve is used?
A food-safe butterfly valve ensures smooth, spill-free pouring and high durability.
Q5: What materials are used in the bags?
We use multi-layer laminated films:
-
Metallic: PA/VMPET/PE + PE, PE/VMPET/PE+PE( double layers), PE/VMPET/PE (one layer)
-
Transparent: NY/PE + PE, PE+PE, EVOH+PE
Q6: Are your materials food-grade?
Yes, all materials are certified food-grade and produced in a hygienic manufacturing environment.
Q7: Do you offer samples for testing?
Yes, we provide sample bags and boxes upon request for quality and machine compatibility testing.
Q8: Is this packaging environmentally friendly?
Yes. Compared to glass bottles, BIB uses less material, reduces carbon emissions, and is easier to recycle.
Q9: Can these bags be used for other beverages?
Absolutely. Our bags can also be used for juice, cold brew coffee, edible oils, water, and more.
