Understanding Corrugated Board Types for Your Packaging Needs

——Types of Corrugated Fiberboard and Cartons——

When it comes to packaging, especially for shipping and product presentation, corrugated cardboard is the unsung hero. But not all cardboard is created equal. If you’ve ever seen codes like A=A или A3A on a box and wondered what they mean, you’re in the right place. This guide breaks down the different types of corrugated fiberboard, their structures, and how to choose the right one.

What Exactly is Corrugated Fiberboard?

Before diving into the codes, let’s define the basic building blocks.

• Corrugated Paper (Fluted Paper): This is the wavy, ridged paper in the middle. It’s created by passing paper through a machine that forms it into those permanent, wave-like shapes.

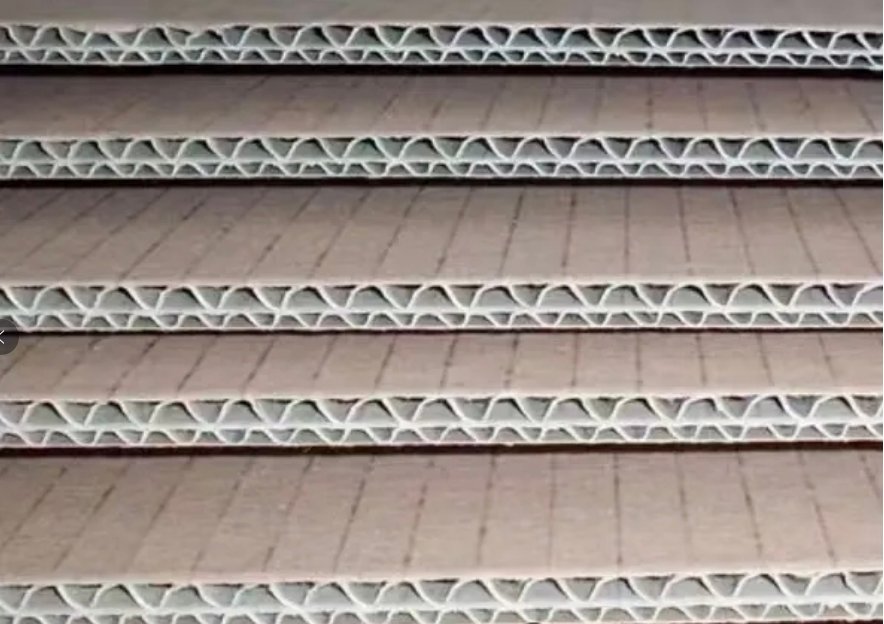

• Corrugated Fiberboard: This is the complete composite material. It’s made by gluing one or more layers of that fluted paper between flat sheets of paper (лайнеры). This structure is what gives the board its incredible strength and cushioning properties.

Decoding the Carton Material Codes: A=A, A3A, and More

In the industry, specific shorthand is used to describe the construction and quality of a board. Let’s break down a common example like “A3A”.

• The Letters (А): The letters, такой как “А”, refer to the grade of the outer liner (the paper you see on the outside) and the inner liner (the paper on the inside). So in “A=A” или “A3A”, both the outside and inside are made from high-quality A-grade paper.

• The Number/Symbol in the Middle: This tells you how many layers the board has.

1. Single-Wall Board (Three-Layer)

Represented by “3” (or sometimes “一” in Chinese), this is the most common type.

• Структура: Two flat liner boards with one layer of fluted paper in between.

• Common Flute Types: А, C, B, E, F.

• Лучшее для: General-purpose shipping boxes, pizza boxes, and product packaging where moderate strength is needed.

2. Double-Wall Board (Five-Layer)

Represented by “=”, this board offers significantly more strength and protection.

• Структура: Three flat liner boards with two layers of fluted paper in between. The two flutes can be of the same or different types (НАПРИМЕР., BC, AB).

• Common Combinations: BC-flute, AB-flute, AC-flute.

• Лучшее для: Heavy-duty shipping boxes, large appliances, and stacking heavy items.

3. Triple-Wall Board (Seven-Layer)

Represented by “#”, this is the heavyweight champion of corrugated board.

• Структура: Four flat liner boards with three layers of fluted paper.

• Common Types: AAA-flute.

• Лучшее для: Industrial applications, very heavy machinery, and creating durable pallets or bulk containers.

Flute Profiles: Finding the Right Height

А “flute” is the wave-shaped paper, and its height is crucial. Different flute sizes offer different benefits. Here’s a quick guide:

• A-Flute: 4.5 – 5.0 мм

  • Characteristics: The original flute. Offers excellent stacking strength and cushioning. Not great for printing.

• C-Flute: 3.5 – 4.0 мм

  • Characteristics: The most common flute for shipping boxes. Good all-rounder for strength and crushing resistance.

• B-Flute: 2.5 – 3.0 мм

  • Characteristics: Good puncture and crush resistance. Flatter surface than A or C, making it better for high-quality printing.

• E-Flute: 1.5 – 2.0 мм

  • Characteristics: Very thin with a flat surface. Often called “micro-flute,” it’s ideal for high-quality printing and die-cut boxes like cosmetics or electronics packaging.

• F-Flute: 0.8 – 1.0 мм

  • Characteristics: Even thinner than E-flute, used for very small, intricate packaging with the highest print quality, like fast-food clamshells or small retail boxes.

Combined Flute Heights

When you combine flutes in double-wall board, the total height adds up. Common combinations include:

• BC-Flute: 6 мм

• AE-Flute: 6 мм

• AC-Flute: 8 мм

• BE-Flute: 4 мм

How Flute Choice Affects Printing

There’s a direct relationship between flute height and print quality. The general rule is: the lower the flute, the better the print surface.

• High Flutes (А, C): Provide great strength but have a bumpier surface. This can lead to “flute show” (washboard-like lines) when printing, so they are best for simple, functional printing.

• Low Flutes (E, F): Create a much smoother, flatter surface. This allows for excellent, high-resolution printing with vibrant colors and fine details.

This is why you might see combinations like BE-flute или EB-flute. Например, if you want the strength of B-flute combined with the superior printing surface of E-flute, you would put the E-flute on the outside. So, EB-flute (E-flute outside, B-flute inside) will give you a better printing result than BE-flute.

Need Help Choosing the Right Board?

Selecting the right corrugated board is a balance between strength requirements, printing needs, and cost. Whether you need heavy-duty triple-wall for shipping or beautifully printable E-flute for retail shelves, understanding these basics is the first step.

If you have a specific project in mind and need help deciding, feel free to reach out to our packaging experts!
